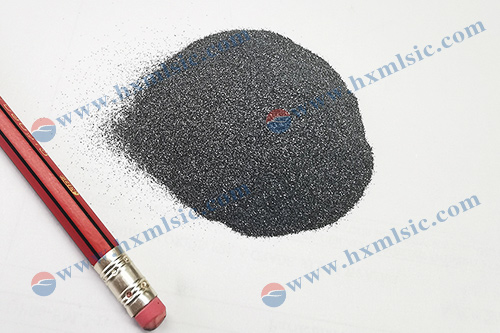

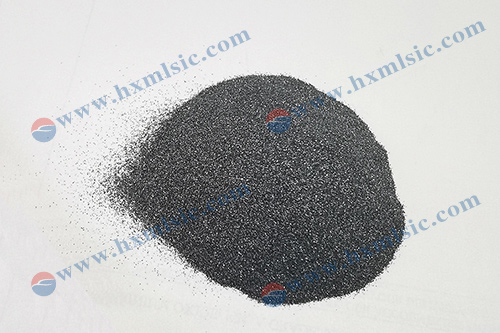

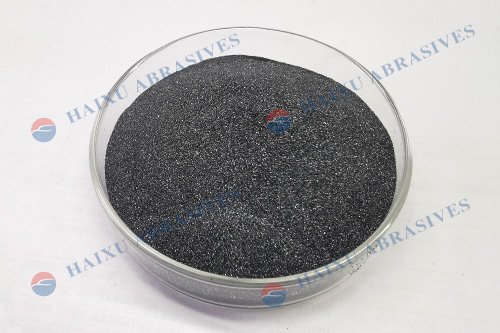

SiC黑色金刚砂F100#颗粒0.1-0.15mm
牌号：黑碳化硅SiC F100#
颗粒粒径：0.1～0.15mm
黑碳化硅F100#金刚砂质地坚硬、棱角锋利、自锐性优异，粒度均匀规整，无大颗粒、杂质含量低；化学性质稳定、耐酸碱、耐磨抗冲击，粉尘少、破碎率低，可循环使用。黑碳化硅F100适合精细喷砂处理、金属表面除锈哑光、石材磨砂仿古、工件去毛刺抛光、喷涂底层喷砂肌理制作；也可用于耐磨地坪骨料、精密铸造清理、树脂磨料填充等场景，砂面均匀细腻，不损伤工件基材，表面处理效果一致性强。
PRODUCT/产品: Black Silicon Carbide F100/黑碳化硅100#
Physical Index/物理参数：
| Hardness: HV/维氏硬度 |
2840-3320kg/mm2 |
| Hardness: Mohs/莫氏硬度 |
9.2-9.3 |
| Specific Gravity/比重 |
3.2-3.45 g/cm3 |
| Particle Shape/颗粒形态 |
Fine powder/细小粉末 |
| Color/颜色 |
Black/黑色 |
| Bulk density(LPD)/堆积密度 |
1.41-1.51 g/cm3 |
| Crystal shape/晶型 |
Hexagonal/六方晶型= |
| Melting Point/熔点 |
dissociated at about 2300°C/2300°C游离 |
| Maximum service temperature/使用温度上限 |
1900°C |
| Thermal conductivity/导热系数 |
70-130W/M·K |
| Thermal expansion coefficient/热膨胀系数 |
3.9-4.5 x10-6 /°C (0-1600°C) |
Chemical Composition/化学成分：
| Chemical Item/化学成分 |
Guarantee Value/保证值(%) |
Typical Value/典型值(%) |
| SiC/碳化硅 |
≥98.1% |
98.58 |
| Free C/游离碳 |
≤0.20 |
0.11 |
| Fe2O3/三氧化二铁 |
≤0.30 |
0.14 |
Particle Size Distribution /粒度分布:
| Grit粒度 |
Mesh#目数 |
Mesh size(um)目数尺寸 |
Weight Standard(%)重量占比 |
Typical Value(%)
典型值 |
| Coarsest Grit最粗粒 |
+70 |
212 |
0 |
0 |
| Coarse Grit粗粒 |
+100 |
150 |
Max. 20 |
6.0 |
| Basic Grit基本粒 |
+120 |
125 |
Min. 40 |
46.8 |
| Mixed Grit混合粒 |
+120 +140 |
125 106 |
Min. 65 |
87.4 |
| Fine Grit细粒 |
-200 |
75 |
Max. 3 |
1.1 |
Applications/用途：
- Sandblasting, etching, and carving of materials such as stone and marble. / 石材大理石等材料的喷砂、蚀刻、雕刻。
- Surface cleaning and passivation of materials such as stainless steel semiconductor components and alloy steel. / 不锈钢半导体件、合金钢等材料的表面清理钝化。
- Ceramic products and electronic ceramics sandblasting and grinding. / 陶瓷制品、电子陶瓷喷砂研磨。
- Polishing and grinding marble, granite, jade, jadeite, gemstones, etc. / 打磨研磨大理石、花岗岩、玉石，翡翠、宝石等。
- Glass artworks, glass products polishing and grinding, etc. / 玻璃艺术品、玻璃制品抛光研磨等。
- Production of grinding tools such as grinding stones, steel paper sand discs, silicon carbide abrasive brushes, black diamond drawing wheels, sponge grinding blocks, and oilstones. / 生产研磨石、钢纸砂盘、碳化硅磨料刷、黑金刚拉丝轮、海绵磨块、油石等磨具制品。
- Reaction sintered silicon carbide ceramics: silicon carbide ceramic filters, silicon carbide ceramic membrane tubes, silicon carbide wear-resistant products, silicon carbide ceramic water pumps, bent pipes, silicon carbide wear-resistant plates, etc. / 反应烧结碳化硅陶瓷：碳化硅陶瓷过滤器、碳化硅陶瓷膜管、碳化硅耐磨制品、碳化硅陶瓷水泵、弯管、碳化硅耐磨板等。
- Composite materials such as foam glass, modified resin, lubricating oil, anti-corrosion mastic and other materials are added. / 复合材料例如泡沫玻璃、改性树脂、润滑油、防腐胶泥等材料添加。
- Wear resistant products such as brake pads, wear-resistant sandpaper with added materials.耐磨制品例如刹车片、耐磨砂纸添加材料。
- Refractory materials such as silicon carbide refractory aggregates, metallurgical carbonization materials. / 耐火材料例如碳化硅耐火骨料，冶金增碳材料。

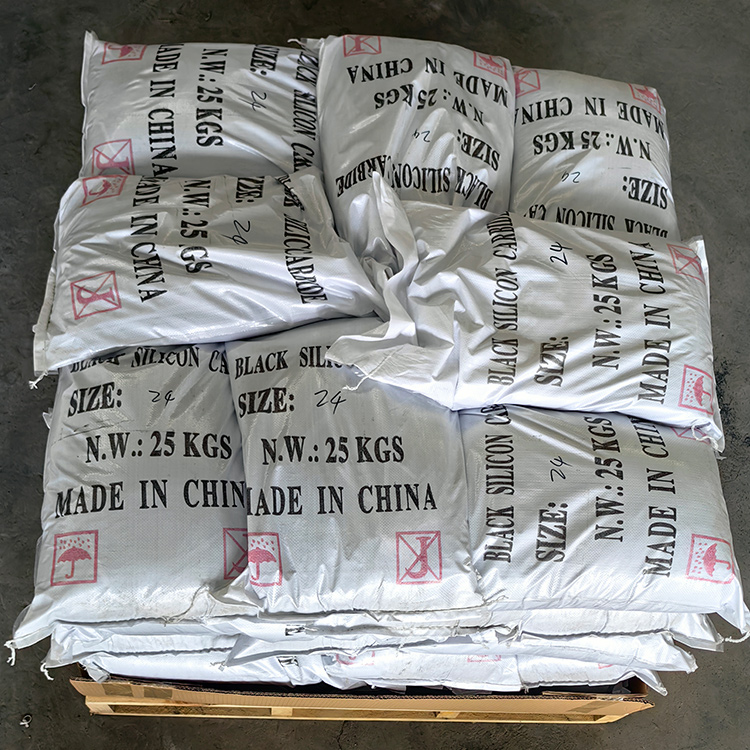

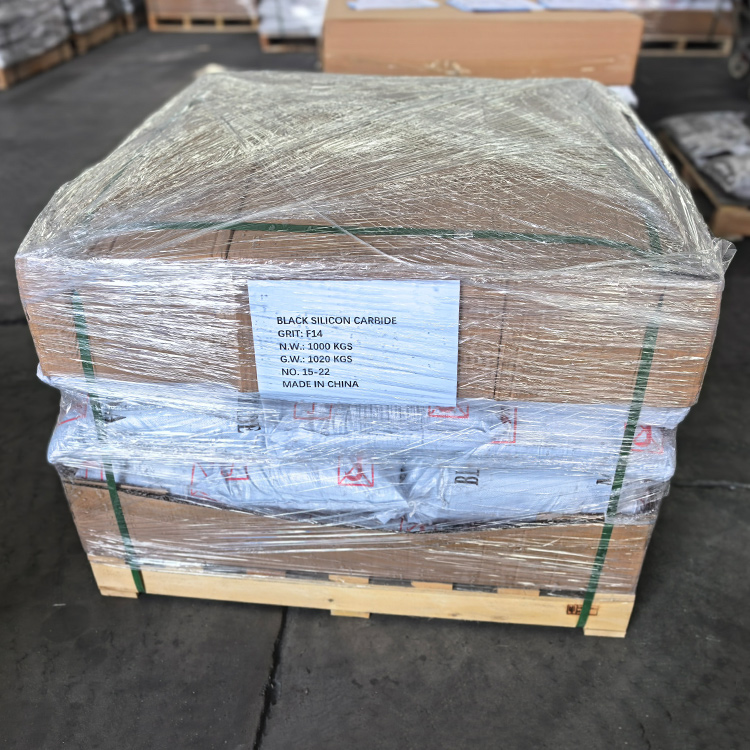

Package/包装：
25公斤编织袋+吨包 / 25kgs/Bag+1Ton/Jumbo Bag
25公斤编织袋+1吨托盘/ 25kgs/Bag+1Ton/Pallet
接受纸袋等定制包装/Customized Packages such as paper bag are available.
